2Mpa Magnetic Level Transmitter Vertical Magnetic Float Type Level Gauge

Name: 2Mpa Magnetic Level Transmitter Vertical Magnetic Float Type Level Gauge
Brand: NuoyingJiaye
Price: 255.0 USD

Quality 2Mpa Magnetic Level Transmitter Vertical Magnetic Float Type Level Gauge for sale

Brand Name : NuoyingJiaye

Model Number : NYUHZ-B-2

Certification : CE,SIL

Place of Origin : Xi'an

MOQ : 1pc

Price : $255.0~$365.0

Payment Terms : T/T

Supply Ability : 1200pcs per month

Packaging Details : Wonden Box

Range : 300--5500mm

Pressure : 2.0Mpa

Temp. : -20--80°C

Protection : IP65

Display : local display

Material : SS

Medium density : ≥0.55g/cm3

Contact Now

Magnetic Level MeterVertical Float Switch

Magnetic Level MeterVertical Float Switch Description:

Magnetic flap level gauge is widely used in petroleum,chemical industry,oil field ,pharmaceuticals industry,food,wine industry etc,suitable for level measurements under the environment of high/low temp, high pressure,strong corrosion,toxicity.

Magnetic Level MeterVertical Float Switch Parameters:

Center-center distance	150~6000mm
Medium density	0.45g/cm3
Nominal pressure	PN2.5~PN40 (x 0.1MPa)
Material	304,0Cr18Ni9+PTFE,
Operating temperature	-190 ~ +200℃
Process connection	DNxx/RF/14
Bottom structure	Blind flange(please note if need PTFE liner valve)
Protection class	IP65

Magnetic Level MeterVertical Float Switch Features:

1.Simple structure, good stability, reliability and durability.
2.Isolated medium, indicator, transmitter and switch
3.Wide range of operating pressure: vacuum to 42Mpa
4.Wide range of operating temperature: -190°C to 425 °C
5.Independent of medium’s physical and chemical states.
6.SPST or SPDT available
7.Optioning float level transducer or capacitive two-wire level transducer to transmit 4-20mA DC signal (or HART) and realize remote control and measurements.
8.Two-wire level transducer can be with 0.56" LED digital indicator for night observation.
9.It is available to form intergrated valve group with the base to save installation space.

Product Tags:

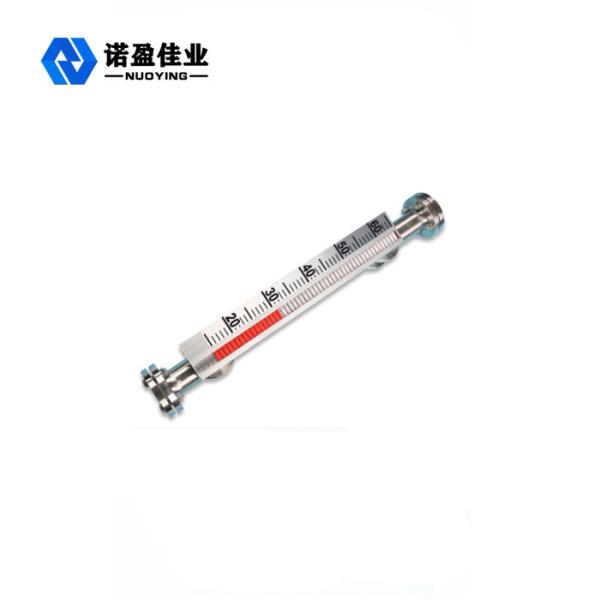

2Mpa Magnetic Level Transmitter Vertical Magnetic Float Type Level Gauge Images
