DN300 Thermal Mass Flow Transmitter LCD Display Stainless Steel

Name: DN300 Thermal Mass Flow Transmitter LCD Display Stainless Steel
Brand: NUOYINGJIAYE
Price: 625.0 USD

Quality DN300 Thermal Mass Flow Transmitter LCD Display Stainless Steel for sale

Brand Name : NUOYINGJIAYE

Model Number : NY-MFL-200

Certification : Explosion-proof certificate

Place of Origin : Xi'an,China

MOQ : 1pc

Price : $625.0~$845.0

Payment Terms : T/T

Supply Ability : 500pcs/pre month

Packaging Details : 60*30*30cm Carton

Type : Variable Area Air & Gas Flowmeters

Pressure : 16bar

Accuracy : 1.5%FS

Power supply : 24VDC

Output : RS485

Material : SS316

Temperature : -40C - +220 C

Construction : Compact and Remote

Contact Now

LCD Display Stainless Steel Thermal Gas Mass Flow Meter

LCD Display Stainless Steel Thermal Gas Mass Flow Meter Description:

LCD Display Stainless Steel Thermal Gas Mass Flow Meter is designed on the basis of thermal dispersion,and adopts method of constant differential temperature to measuring gas flow.It has advantags of small size,easy installation,high reliability and high accuracy,tec.Gas flowing through the sensing section passes over two sensors one of which is used conventionally as a temperature sensor, whilst the other is used as a heaterImproper installation and use can lead to abnormal and damage of the instrument and even the process control equipment.

LCD Display Stainless Steel Thermal Gas Mass Flow Meter Technical Parameters:

Description	Specifications
Type	Variable Area Air & Gas Flowmeters
Measuring	Various gases (Except the acetylene)
Accuracy	1.5%
Working Temperature	Sensor:-40°C~+220°C Transmitter:-20°C~+45°C
Working Pressure	Insertion Sensor:medium pressures≤1.6MPa Special pressure please contact us
Power Supply	Compact type: 24VDC Power consumption≤18W
Output	RS485(optoelectronic isolation)
Alarm Output	Relay,Normally Open state
Sensor Type	Standard Insertion
Construction	Compact
Pipe Material	Carbon steel,stainless steel,plastic,etc
Display	Mass flow,Volume flow in standard condition,Flow totallzer,Date and Time,Working time,and Velocity,etc

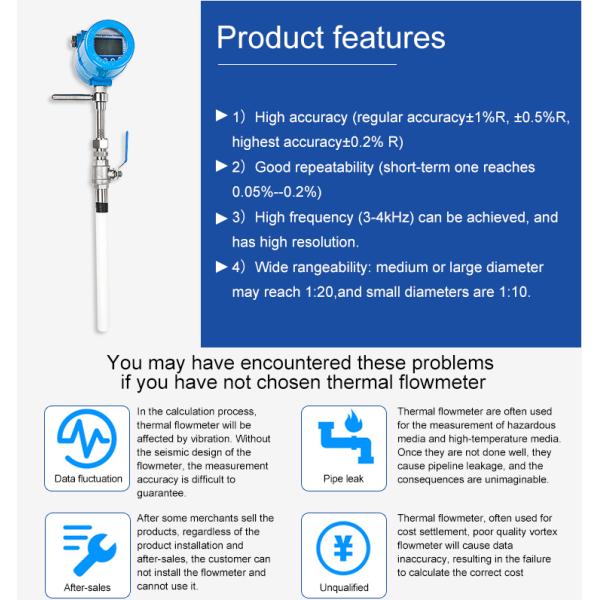

LCD Display Stainless Steel Thermal Gas Mass Flow Meter Features:

DN300 Thermal Mass Flow Transmitter LCD Display Stainless Steel

LCD Display Stainless Steel Thermal Gas Mass Flow Meter Application:
